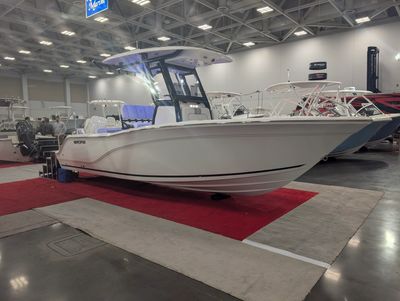

228 Commander features and specs
Dimensions
Centerline Length :
22' 4"
Beam :
8' 6"
Bridge Clearance :
99"
Deadrise :
18 degrees
Draft (hull) :
14"
Transom:
25"
Weight
Dry Weight :
3,248 lbs
Maximum Weight :
4,680 lbs
Capacity
Fuel Capacity :
91 gal
Persons Capacity :
8
Total Capacity :
2,200 lb
Engine
White Yamaha 200
Standard Equipment
Bow:
- Stainless steel bow eye with chafe plate
- Anchor compartment with rope storage locker
- LED navigation lights
- Curved bow backrest cushions
- Full cockpit coaming pads with integrated fold out forward facing bow backrests
- Under seat insulated storage & fishbox
- Casting deck with removable filler board
- Stainless steel recessed grab rail at bow
- In-floor storage with 5-gallon bucket
- Removable bow filler cushion
- Forward console seating with contoured backrests
Helm:
- T-Top with canvas awning, rear spreader lights, tulip rod holders (4) and LED anchor light
- For Yamaha mechanical motors (Dometic SeaStar hydraulic steering system with tilt helm, Two digital gauges with backlighting, Tachometer and speedometer with volt, fuel, and push button functions)
- For Yamaha digital motors (Multifunction instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions, Display may vary with availability, Helm will vary with engine choice)
- Fusion Apollo Marine Stereo
- Six Fusion marine speakers in deck
- Windscreen
- Top mount compass on console
- Console dash shroud
- Dash space for flush electronics (compatible for two 12" displays)
- Stainless steel steering wheel with turning knob
- Lockable console door
- Horn
- Integrated console footrest with backlit lower level footrest
- 12-volt power point
- Battery switch
- Console courtesy lights
- Pre-rigging for two batteries
- Marine grade soft mat decking and console accents
Cockpit:
- Leaning post helm seating with backrest and hinged bolsters
- Stainless steel compression latches
- Under gunwale recessed rod storage with powder coated toe-rail
- Stainless steel closeout rings for rod holders
- Cup holders (10)
- Stainless steel rod holders (4)
- Aft bench seat with removeable cushions
- Self bailing cockpit with stainless steel grates
- Aquarium style pressurized livewell with window (30 gallons, 800 GPH aerator)
- Livewell light
- Dip net with integrated easy access storage
Transom:
- Stainless steel walkthrough gate
- Transom storage compartment - plumbed and insulated for use as a cooler and notched for beach anchor storage
- Raw water washdown hose with storage tube on aft bulkhead - 15' of hose with adjustable nozzle
- Bulkhead fittings for hydraulic hoses in splashwell
- Stainless steel motor rigging flange
- Stainless steel transom saver
- Stainless steel rear boarding telescopic ladder with integrated boarding handle
- Recessed electric trim tabs with integrated hull design
- Stainless steel U-bolts on port and starboard transom
Bilge:
- Marine fuel/water separating filter
- (2) 1100 GPH bilge pumps with built in electronic float switches
- Raw water pump
Other great features:
- Composite hull & deck
- Isothalic gelcoat
- Vinyl ester barrier coat
- Sand-grip deck surface
- Stainless steel rub rail
- Stainless steel fasteners
- Stainless steel through hulls
- Stainless steel pull-up cleats (6)
- Silver boot stripe available on white and full hull gelcoat options
- Limited Lifetime Hull Warranty
